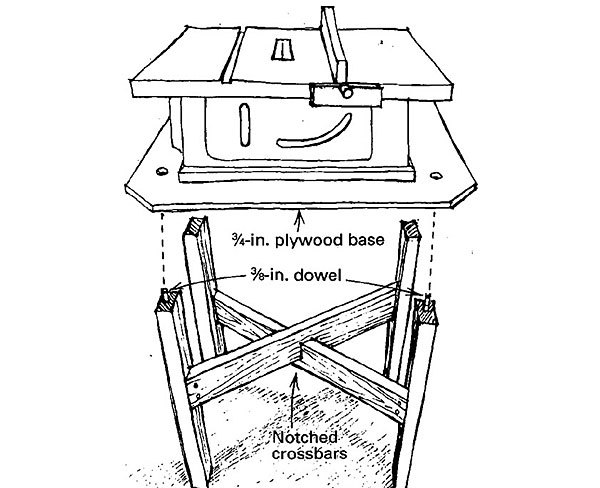

My work as a remodeler requires that I carry a wide variety of tools and materials to the job, so space in the truck is at a premium. That’s why I came up with the knock-down saw stand in the drawing. The stand is constructed of 2×4 legs that have been connected in pairs by way of 2×4 crossbars. Screws and glue hold them together. The crossbars are notched in the middle where they engage one another.
I mounted my portable saw on a 3/4-in. plywood base that has a big hole in its middle to evacuate sawdust. The saw is held fast to the stand during use by dowels. A pair of 3/8-in. holes along the front edge of the base corresponds to the dowels in the front legs of the saw stand.
—Robert Conrad, Pellston, MI
Edited and illustrated by Charles Miller
From Fine Homebuilding #89
