Tools & Materials

DH30PC Rotary Hammer Review

This rotary hammer from Hitachi features a quick-change removable SDS chuck and a 1/2-in. three-jaw chuck, and the handle and depth stop are handy and well-made

By David Crosby

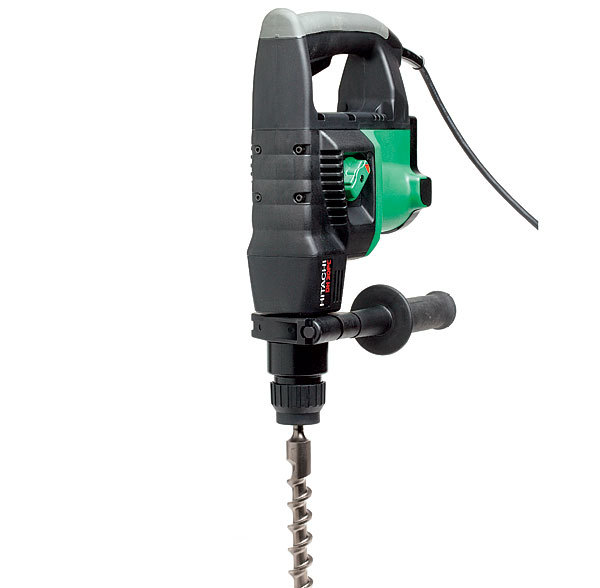

This rotary hammer is the second-lightest machine we tested, although light weight is not always an advantage with rotary hammers. It compact length, however, is definitely an advantage in tight places. It includes a quick-change removable SDS chuck and a 1/2-in. three-jaw chuck. At a maximum of 1 in., this tool has the lowest capacity of the rotary hammers we tested, although since 85 percent of holes drilled in residential construction are 3/4 in. or smaller, this will rarely be a disadvantage. It was loud and appeared to labor during our hole-boring test. In addition, we found it too easy to drill too deep with the plastic depth stop.

Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

Editor Test Results:

Overall RatingGood
RunoutN/A
Ergonomics/BalanceExcellent
Endurance on a Single ChargeN/A
TorqueN/A
Chuck/Transmission QualityGood
Drilling Test26 sec. to drill a 4-in. deep hole

Manufacturer Specifications:

ManufacturerHitachi
Manufacturer's Web Sitewww.hitachi.us/hpt
Manufacturer's Phone Number800-829-4752
Weight10.6 lb.
DimensionsN/A
Chuck TypeSDS chuck and a 1/2-in. three-jaw chuck
Clutch SettingsN/A
Chuck Capacity1/2 in.
Speed850 rpm
VoltsN/A
Recharge TimeN/A
Battery TypeN/A
AccessoriesRemovable handle
Hammer Speed0 to 3,700 blows per minute
Drilling Capacity1-1/4 in.
