Straightening a Warped Cabinet Door

Any threaded rod from your local hardware store will do the trick.

Issue 201

The one small bathroom in my Spanish-style house had a cabinet with a seriously warped door. When closed, the bottom corner was about an inch out of plumb.

At the time, I was building banjos and had a supply of adjustable truss rods. I decided to use a pair of them joined by a threaded coupling as an external truss rod on the inside of my cabinet door. I found a piece of aluminum angle and cut a pair of anchors from it, drilling four holes in each so that I wouldn’t run the risk of them pulling out of the soft wood of the door frame.

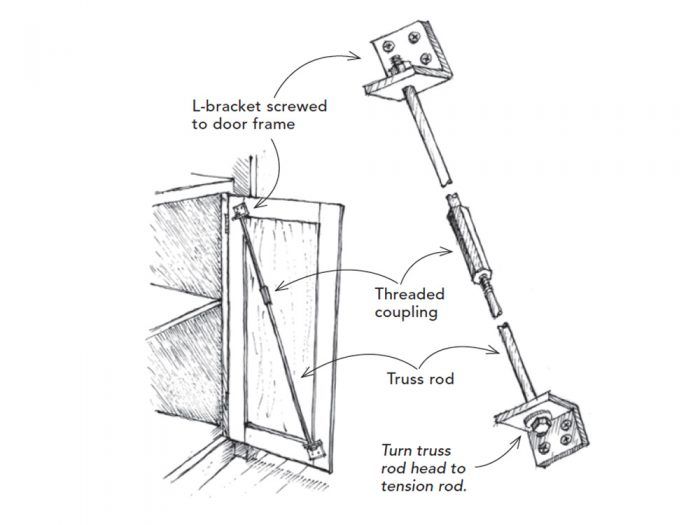

As shown in the drawing, the two rods span the back side of the door, running diagonally from the bottom corner of the frame. As I tightened the rod, the tension drew the two opposing corners toward one another, relieving the twist in the door. The door fits perfectly and hasn’t required readjustment in 30 years.

By the way, you don’t need a banjo truss rod to make this technique work. Any threaded rod from your local hardware store will do the trick.

Frank Ford, Palo Alto, CA

Edited and Illustrated by Charles Miller

From Fine Homebuilding #201

Sign up for the Fine Homebuilding Tip of the Day and get daily tips and special offers delivered to your inbox.

Sign Up

Get home building tips, offers, and expert advice in your inbox

×
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

View Comments

  1. EdR | Nov 29, 2017 03:09pm | #1

    good idea, but you leave this in place for how long . . . . . forever?
