Controlling Planer Shavings on Site
Create a quick, low-tech planer dust collection system for the job site.
I recently purchased a DeWalt thickness planer, and I was amazed and pleased with the fan-assisted chip-ejection setup. In the shop, I can hook up the planer’s ejection port to my 4-in.-dia. dust-collection hose to manage the piles of chips.
But what about taking this portable planer out of the shop and onto a job site? I reasoned that with the tool’s chip-ejection fan, I should be able to come up with a low-tech portable planer dust collector.

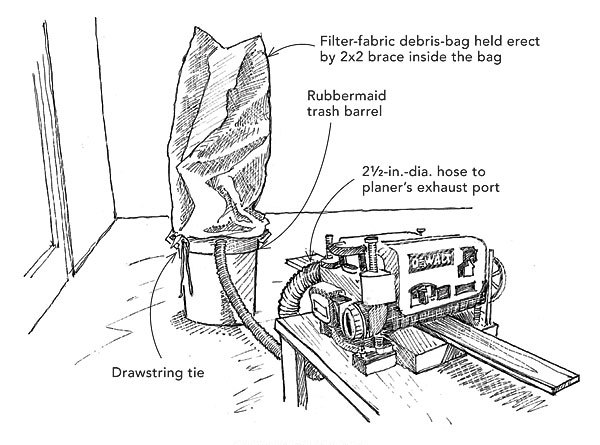

My solution? I took a Rubbermaid Roughneck trash can and bore a hole in it for a 2 1/2-in.-diameter vacuum hose. Then, as shown in the drawing, the hose hooks up to the ejection port on the planer.
Next, I had my daughter sew a bag from some landscape fabric with a drawstring large enough to go over the rim of the trash can. Propped up from the inside with a 2×2 scrap, it looks like a mini version of my shop unit. It catches 95% of the shavings. Cleanup is a breeze.
— Mark Gibbesh
From Fine Homebuilding #225
