This Master Bath Remodel is a Family Affair

Would you hire your siblings to take a dated master bath from cramped to contemporary?

By Steve Campbell Issue 271 - Kitchens & Baths 2017
Article Image

My sister-in-law, Victoria Buker, is a landscape architect who works in construction management. When her master bathroom—untouched since the house was built in 1953—needed an upgrade, she recruited me to do the design, my brother-in-law, Dan Buker, to be the general contractor, and my wife, Katherine Buker, to install the tile. Victoria wanted the remodel to convert the cramped space into a modern, contemporary bathroom with a spa-like feel.

Fortunately, the master bath wasn’t the only room in the house that we were remodeling, so we had some control over the size and shape of the room. In the end, we decided to keep the shape a simple rectangle and the size relatively small, and used the cabinetry and materials to create the calm and elegant style that Victoria was looking for.

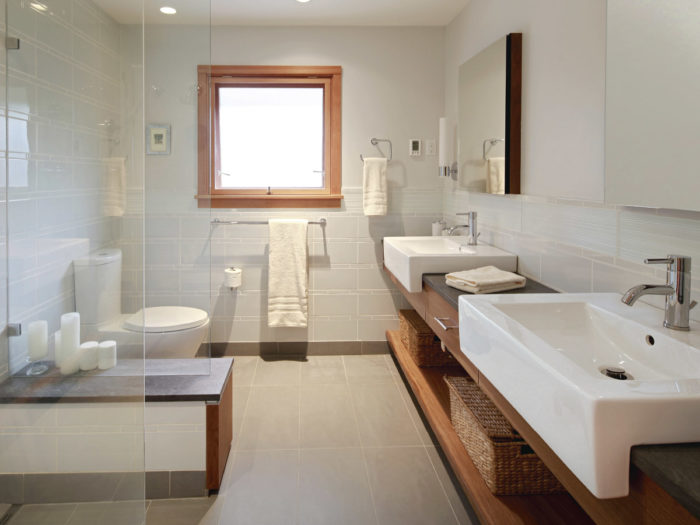

The vanity consists of two horizontal planes. The upper section has drawers below the counter and two sinks above. The lower shelf is open to allow for storage flexibility and to make the small room feel spacious. The open bathroom vanity was custom-designed and built by Dan and engineered with Unistrut metal brackets. The vanity is finished with walnut and walnut-veneer plywood. The stone countertop is made up of three separate remnants found at local fabricators.

Additionally, a low cabinet, split between the toilet and the shower, has open shelves that face the toilet to provide more storage space, while inside the shower the same structure functions as a shelf for storing toiletries.

Victoria wanted a large walk-in shower to modernize the space. The new shower’s curbless entry ensures accessibility. Its frameless glass walls keep the room feeling as open as possible. The shower has a linear drain and its tiles have an anti-slip finish. Katherine waterproofed the tile shower with Schluter Ditra and Kerdi waterproofing products. The 12×24 porcelain tile is the same throughout the space, making the room feel larger than it actually is.

Victoria loves her new master bathroom and it was rewarding to do the work as a family. If the new bath lasts as long as the original bath did, it too will be long overdue for an update. But that will be work for the next family who owns the home to tackle.

Steve Campbell is an associate architect with The Johnson Partnership and has been with the firm since 2001. Photos by Mike Hipple, courtesy of the author.

For extra photos beyond the print article, click here, and click the View PDF button below to see the article as appeared in the print magazine, with more photos and information.
