SPEC

Insulating Gravel

The relatively high price of Glavel—an insulating foam-glass foundation base material—is offset by the lack of a need for rigid foam sub-slab insulation.

By Justin Fink Issue 288 - Dec 2019/Jan 2020

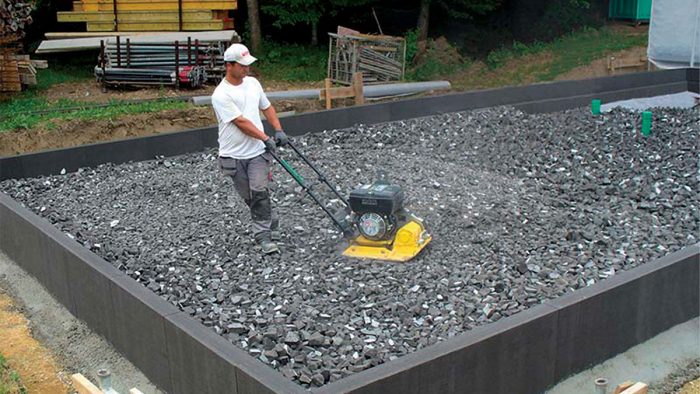

Glavel, a lightweight foam-glass product, replaces the aggregate layer under a concrete slab and provides thermal insulation from the soil.

Insulating a subslab has traditionally been a multistep process that calls for compacting and leveling the subbase (often gravel), followed by the addition of one or more layers of board insulation. A Vermont-based company is now reducing that process to one step with the creation of compactable, foam-glass gravel.

The product, Glavel, weighs 9 1/2 lb. per cu. ft.— about 5% of the weight of stone gravel—and is delivered in 3 1/2-cu.-yd. bags. Once poured into place, it is compacted just like ordinary gravel (at a ratio of 1.3:1) to create a minimum 6-in.-thick base. It offers a compressive strength of 54 psi—enough for most, if not all, residential subslab applications—and yields an R-value of about 1.7 per in.

The price is perhaps the most surprising piece of information about Glavel. The material sells for between $85 and $100 per cu. yd. on the East Coast (nationwide shipping is also available), but once you factor in the labor savings, this product becomes close competition for conventional gravel and EPS or XPS insulation.

www.glavel.com

—Justin Fink, editorial director

From Fine Homebuilding #288
