Simple, Site-Made Trusses
Cutting angles in common 2x12s makes framing a small, low-pitch roof less complicated.

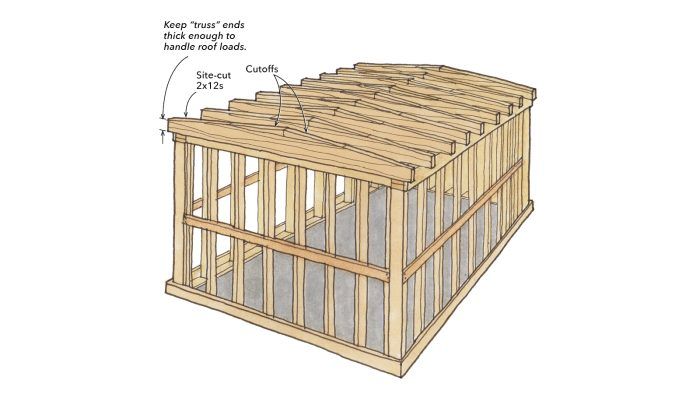

We were recently hired to build a small structure for an electric cooperative. The site was located right underneath some low-hung power lines, so the building had to be relatively short. To keep the pitch low and the process simple, we built our own “trusses” by cutting angles in common 2x12s.
To make sure we left enough meat at each end of the board, we only cut a section off the ends and then used the angled cutoffs to add to the height of the trusses. This process eliminated more complicated roof-framing techniques, and it was fast and budget friendly.
— Aaron Miiller; Pollard, Ark. Edited by Mark Petersen.
