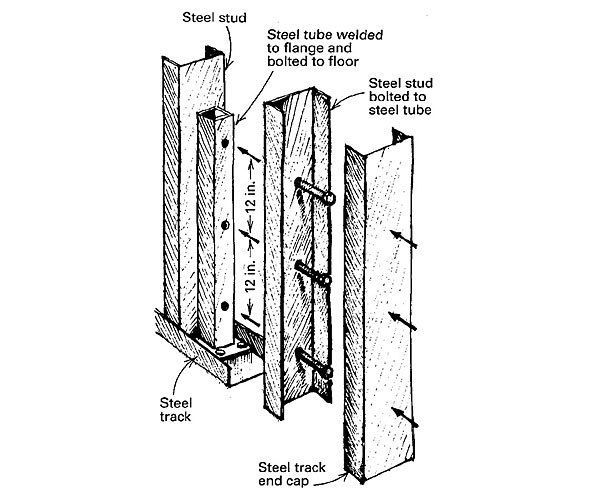

Chris Sturm’s tip on Wing-wall reinforcementlooks effective, but I think the method my crew uses to accomplish the same goal is easier. Instead of using a cast-concrete post to stiffen the wall, we use a steel post. As shown in the drawing, we have a local metal shop fabricate a post out of steel tubing that is 6 in. shorter than the wall. The post is drilled on 12-in. centers and has a 1/4-in. steel baseplate for 1/2-in. bolts.
Once the steel post is bolted to the floor, we bolt the adjacent studs to the post. Then the outside corner of the wall is capped with a piece of steel track to act as backing for the drywall finish. We prefer this method because it eliminates the delay of having to work with concrete.
Joseph M. Marrow, Scarsdale, NY
