The electric utility serving the Hawaiian island of Kauai is well on its way to replacing generating stations running on fossil fuels with utility-scale photovoltaic (PV) arrays that can handle a substantial part of the utility’s peak electrical load.
The utility is in the process of completing a pair of 12mw PV arrays at Anahola. When the second one is finished later this year, the facility will account for a sizable portion of the island’s total 78mw peak power supply. On some days, the island’s solar arrays will meet 80% of the total load.
It’s an enviable achievement for renewable energy. But as Peter Fairley writes in a post at the MIT Technology Review, the Kauai Island Utility Cooperative has learned that kind of progress doesn’t come without some growing pains.
The problem, Fairley explains, has been the batteries the utility installed to even out fluctuations in PV output. Current can drop by as much as 80% in less than a minute when clouds drift over the array, causing a variety of problems on the grid.
The utility initially chose lead-acid batteries and built a $2 million facility designed by Xtreme Power at a 6mw solar facility that opened in 2012 at Port Allen. Batteries were capable of releasing 4.5mw of electricity in short bursts, and the utility hoped they would eliminate some of the problems associated with lapses in power. That included a drop in the frequency of the alternating current on the grid to below the 60 Hz. standard, a problem called “frequency droop” which could damage electrical equipment belonging to customers.
But the batteries degraded much faster than the utility had hoped. While they had been designed to last eight years, Fairley writes, they had very little capacity after just two years.
Lithium-ion batteries in a redesigned storage system
Although the utility might have tweaked the lead-acid batteries for somewhat better performance, other Xtreme customers were having problems, too, and the Texas-based company eventually declared bankruptcy.
So the utility switched gears and chose a lithium-ion battery system manufactured by SAFT, a French company, Fairley says. The new batteries should be able to handle four to six times as many charge-discharge cycles as the lead-acid batteries, and the $7 million battery installation will be able to deliver 6mw of power continuously and 12mw in short bursts.
The utility hopes the increased capacity of the batteries will help ease the frequency drooping from the island’s other solar farms. Finally, when the PV facility at Anahola comes on line later in the year, there are times when solar output will exceed what the grid can carry. The batteries should be able to absorb some of the excess and distribute it at night.
Major Hawaiian utility alters net-metering rules
Elsewhere in the islands, the state’s biggest utility, the Hawaiian Electric Companies (HECO) has proposed abandoning its existing net-metering program by April and replacing it with a tariff system based on the wholesale cost of electricity.
As reported at Greentech Media, the proposal to the Hawaii Public Utilities Commission this week is a way of transitioning to a new distributed generation program by 2017. By then, HECO promises a system that employs smart inverters, energy storage, and other technologies and makes it possible for customers to make money from renewable energy systems.
In the meantime, solar advocates probably won’t like what they hear.
During this transitional period, HECO proposes to pay customers who sell excess power to the grid a rate based on the wholesale cost of utility power. According to Greentech Media, the credit would be calculated as the sum of the Base Fuel Energy Charge, which is taken from the price of fuel, and the Energy Cost Adjustment rate, which lets each island to modify the base charge due to changes in fuel costs and the price of electricity it has to buy from independents.
This month, those credits would add up to about half the island’s average retail electricity costs, which range from 31.2 cents to 37.7 cents per kwh, the highest in the country.
Even with the reduction in payments, HECO said, the proposed credits should be high enough to pay off a 5kw photovoltaic system in five to nine years.
HECO says net-metering payments have grown from about $19 million at the end of 2012 to $53 million by the end of last year. It claims the existing net-metering rules force more costs onto nonsolar customers, and makes the state less attractive for utility-scale and community-owned solar and geothermal projects, Greentech Media said.
The utility is concerned that the relatively high percentage of distributed generation–more than 15% on some circuits–causes a variety of problems on the grid. It has been working with the National Renewable Energy Laboratory and SolarCity on research aimed at showing programmable inverters will be able to relieve some of the problem.
Fine Homebuilding Recommended Products
Fine Homebuilding receives a commission for items purchased through links on this site, including Amazon Associates and other affiliate advertising programs.
Reliable Crimp Connectors
Affordable IR Camera
8067 All-Weather Flashing Tape

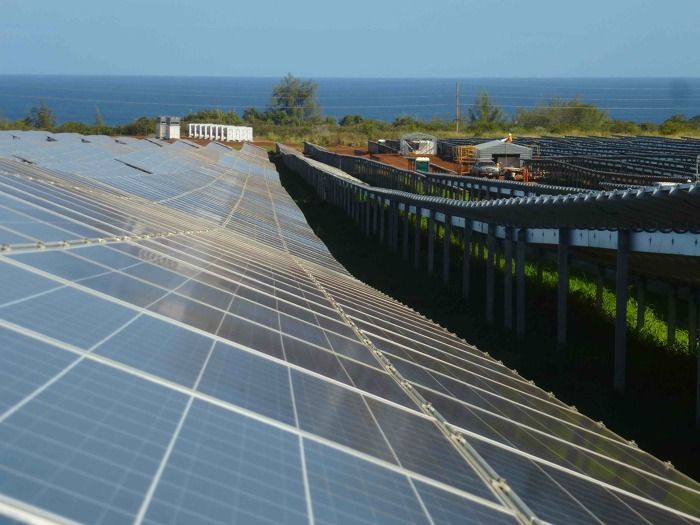

Hawaii's high electric rates are a good motivator for developing more utility-scale solar, but the effort hasn't been painless. This array on Kauai is one of two 12mw stations at Anahola that will employ lithium-ion battery storage.
