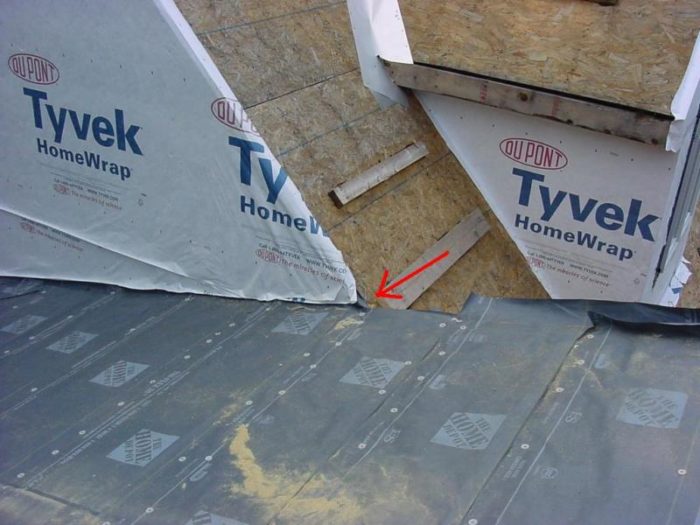

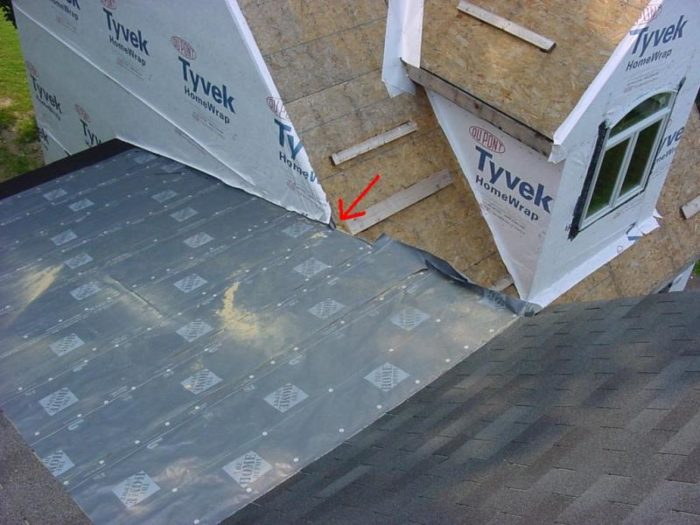

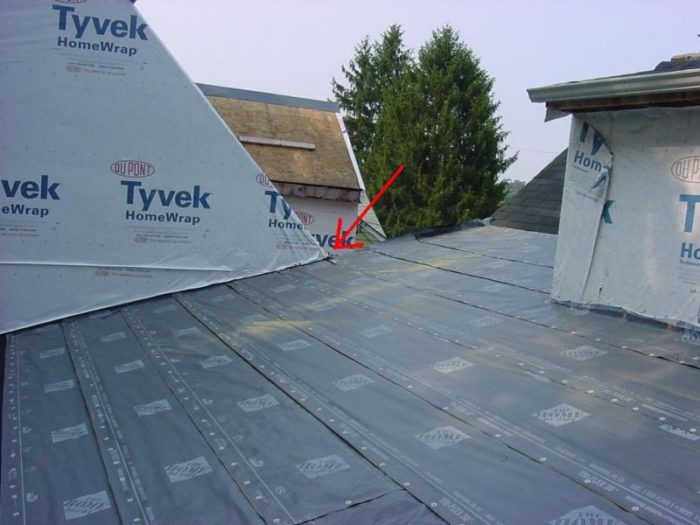

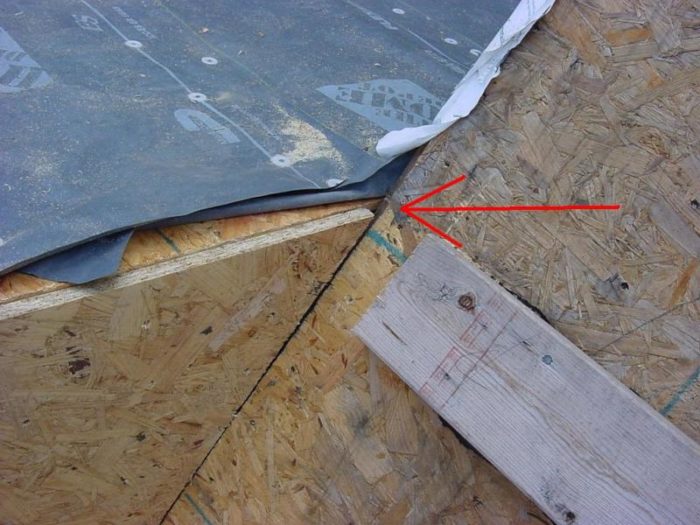

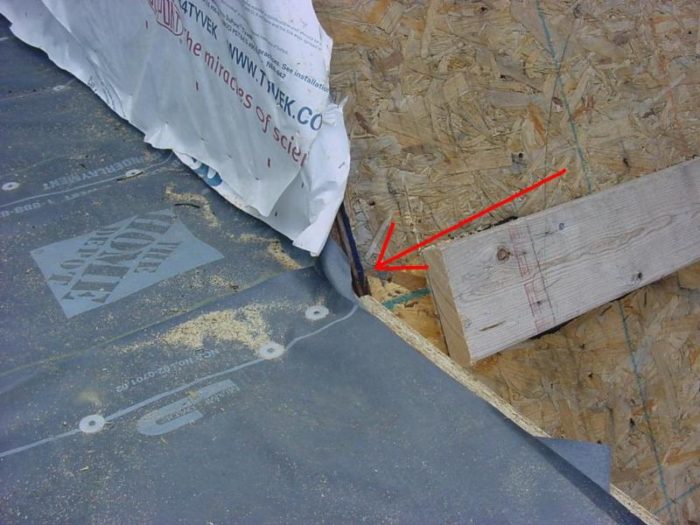

I’ve got a pretty interesting situation that I’d love some help with… added a garage that has an opposing slope (12/12) to the house and addition (3.5/12 at the intersection). I took some shots of the junction and pointed out the critical spot w/ a red arrow. Does anyone have a tip? Thanks for any ideas! -Ryan
Fine Homebuilding's editorial director has some fun news to share.
"I have learned so much thanks to the searchable articles on the FHB website. I can confidently say that I expect to be a life-long subscriber." - M.K.
Replies
Treat it as you would a chimney corner on the high side. Giftwrap everything with ice and water shield and then step flash. Cut and arrange the step flash so that it is on top of the edgemetal and so that it sheds out over the siding below. Cut two pieces of step flash halfway along the bend and slide them together. By bending at the end of the cut you will have a flash that will fit most corners. Add any pieces of metal as you see fit, keeping in mind that water runs downhill (I know it's obvious but a lot of people seem to forget this). Wherever you add blackjack use it to keep water out but allow for any sneaky drops to drain away quickly.
Okay... I read your note slowly a couple times and I think I've got it! Thanks for the tips! -Ryan
I can't tell if your roof underlayment on the low side extends a foot up the wall-but it should,to act as backer for your step flashings.
When you shingle and step flash up to the "red arrow" on the low side and again from the high side you should really have a metal shop or roofer custom fabricate and solder up a piece that will be watertight.Maybe you have the proper tools and experience to do it.
Really needs to be done on site to fit your particular situation.
A lot of guys have a 4' break that is transportable and could make it up in an hour or so.Might be a minimum charge,but having no leakage might be worth it.
That is a good idea... I think I'll hunt up an experience roofer who can solder up a piece of custom flashing. Thanks for the input- Ryan
That's look's like a pretty good sized project for a weekend warrior!
There is no problem with that. I would back it up with a peelandstick, but the step flashings from each side will lap up and over each other, then you can do a tiny little dead valley there after teh rake trim is on and the metal edging, It might be 8" long instaead of the inch or so now, but that won't trap any water or snow that short.
Where I see a problem is in the valley metal on that dormer. it is not doing anything. You need the underlayment on first, then shingle up to the bottom opf the valley so the metal can lap over the shingles there and kick water out on top. As it sits now, any water that hits that metal, will be directed right in under everything.
