How to Retrofit a Ceiling Fan Electrical Box

Use a fan-rated outlet box that will support the fan's weight and its motion. Look for the label to be sure.

By Clifford A. Popejoy
Article Image

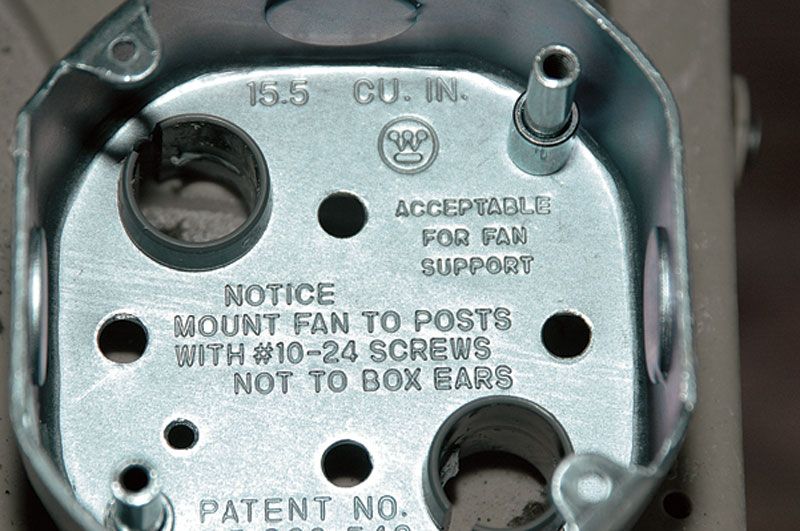

Before installing a ceiling fan, make sure that you follow the portion of the electrical code that requires that you use a fan-rated outlet box that will support the extra weight and the motion associated with a fan. A fan-rated box will be labeled as such inside and typically can support up to 70 lb.



Low profile



Low profile Low profile

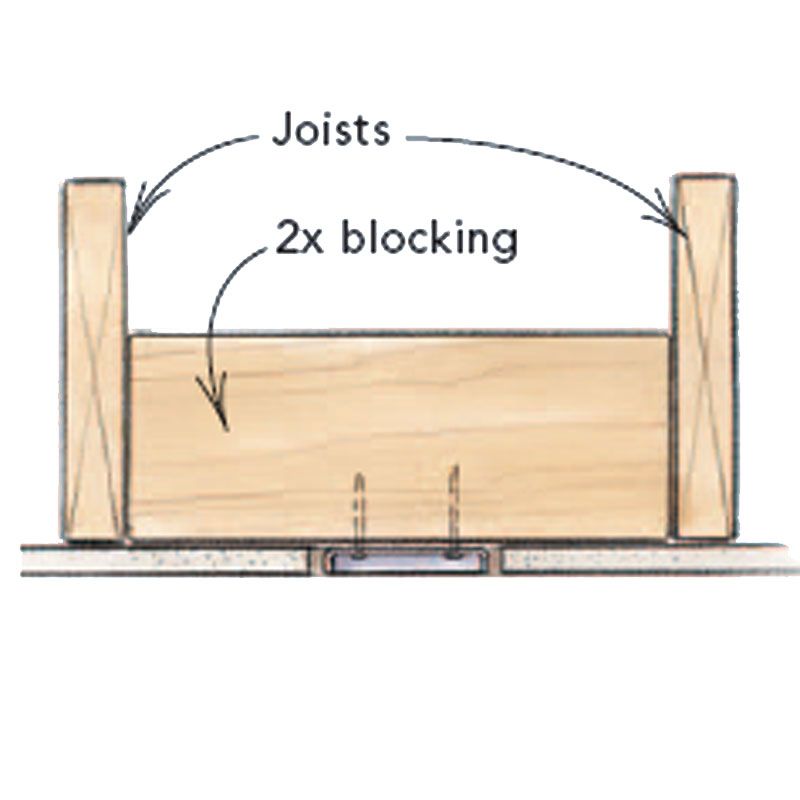

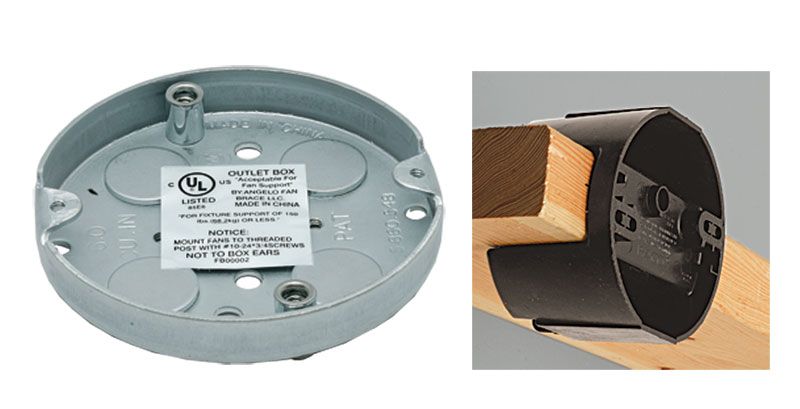

A 1⁄2-in.-deep pancake box is meant to be screwed to a joist or block. It’s used if only one cable is coming into the box.



Deeper profile



Deeper profile Deeper profile

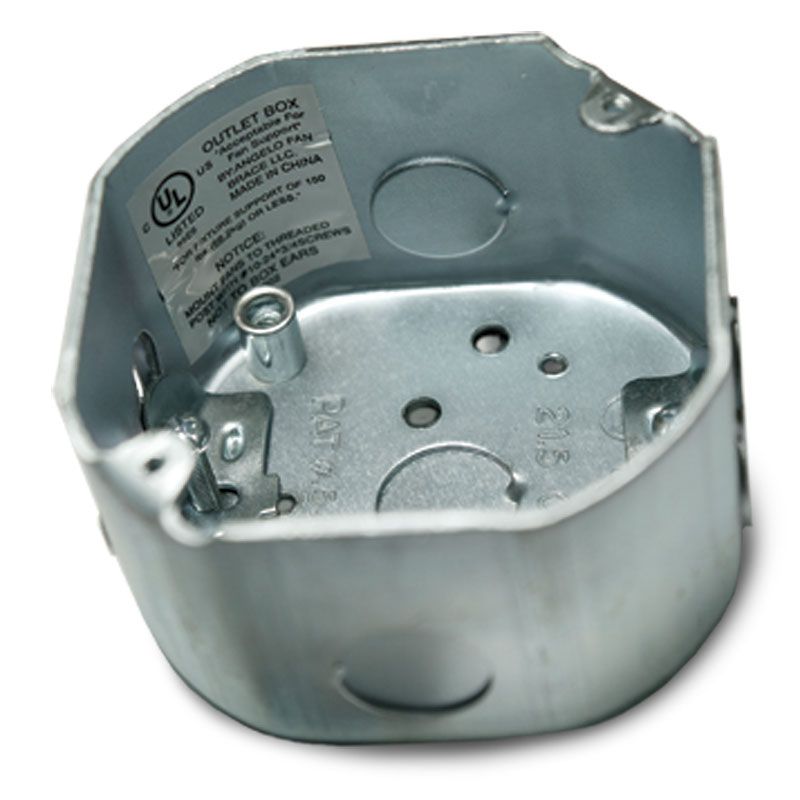

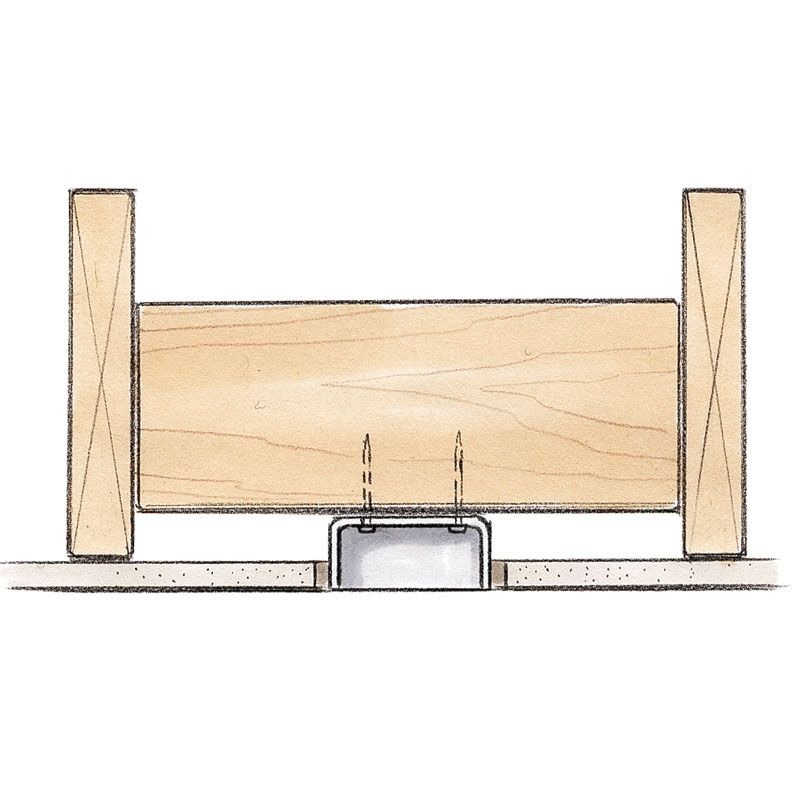

A 2-1⁄4-in.-deep box can be attached to blocking between joists and is roomy enough to handle more than one cable. It is also available in a saddle-mount configuration.



No blocking, no problem

No blocking, no problem No blocking, no problem

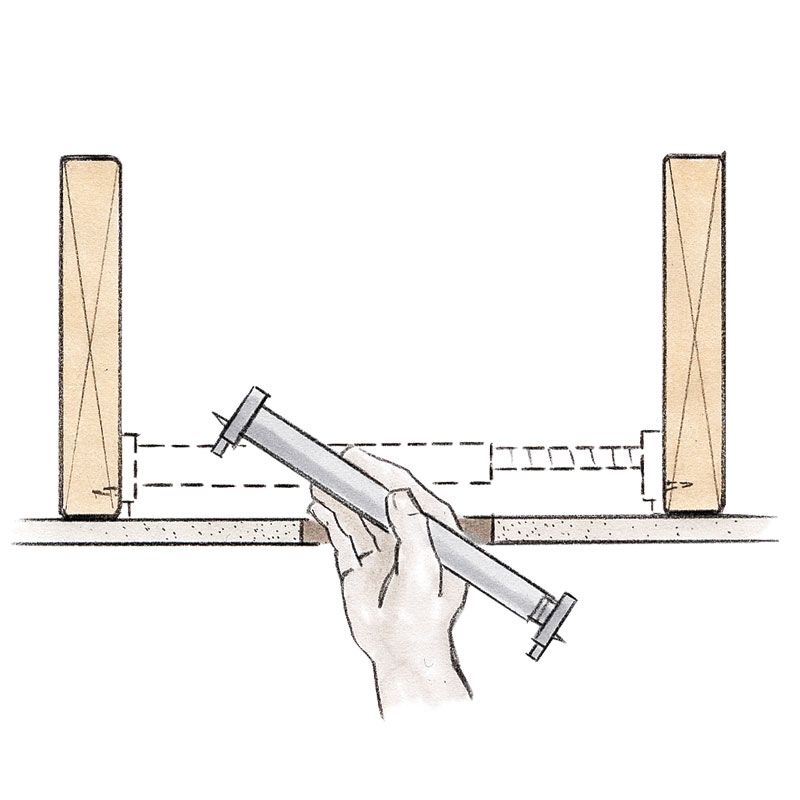

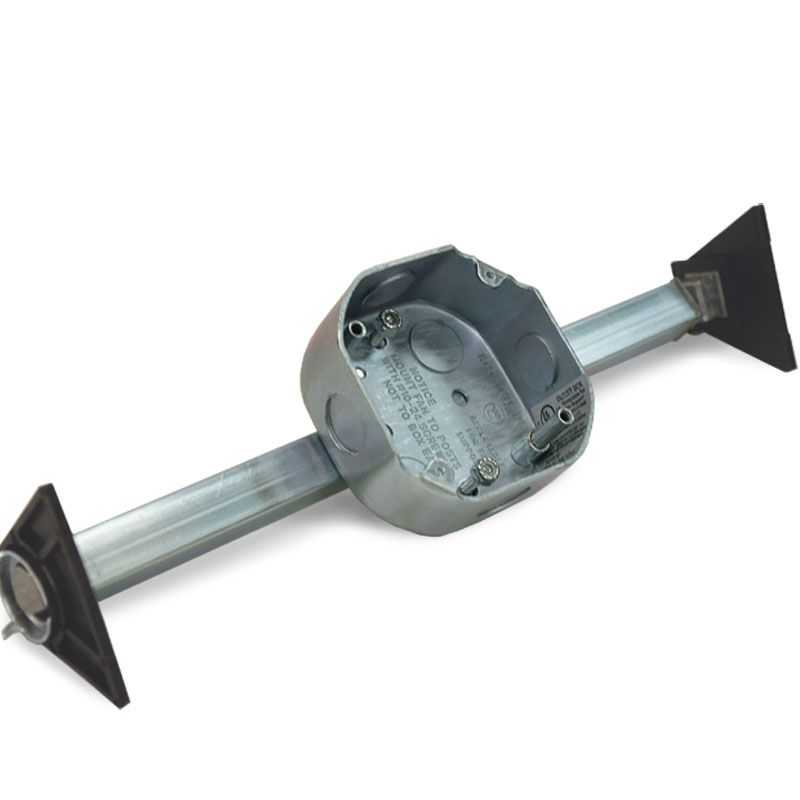

Paired with a deep box, this hanger is meant to span between two joists and takes the place of wooden blocking.

This tutorial is an excerpt from the following article:

Retrofitting a Ceiling Fan

With common-sense wiring and the right hardware, you can replace an existing light fixture with a breeze in almost any room in the house

Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.

Sign Up

Fan-rated outlet boxes support the extra weight and motion associated with a fan.
