“Major thermal bypasses” is building-geek speak for holes in your house – holes through which you are losing an abnormal amount of heat. More formally, they are areas in standard construction where flaws in the building enclosure allow air to escape, bypassing the thermal control layer.
Thermal bypasses: the what and where
The building envelope includes those elements of the building (the floor, walls, and roofs) which separate the comfortable interior from the potentially uncomfortable exterior.
More from GreenBuildingAdvisor.com
Air Leaks Waste Energy and Rot Houses
The Stack Effect: When Buildings Act Like Chimneys
Questions and Answers About Air Barriers
Air Leaks or Thermal Loss: What’s Worse?
Navigating Energy Star’s Thermal Bypass Checklist
Blogs by Erik North
Exterior Insulation Is Like Like A Sweater For Your House
Heat Loss from Air Is No Big Deal, Right?
Insulating Stud Cavities in Existing Homes
How to Insulate and Air-Seal Pull-Down Attic Stairs
How to Insulate and Air Seal an Attic Hatch
A huge part of an energy audit is inspecting the building envelope for problems. And thankfully, as builders have standardized their building practices, they’ve been considerate enough to standardize how and where they make giant holes in the building envelope. Thanks, guys!
Thermal bypasses and the home buyer’s dilemma
As I mentioned, thermal bypasses are inadvertent holes in the building envelope. If one were to conceive of a perfectly insulated and airtight house (with an appropriate level of fresh ventilation air … no suffocating), it would be very simple. Make it like a box.
Wait, you want to get inside?! OK, we’ll add a door. And you want to see the ocean view you paid an extra $100K for? Well, they have a really lousy R-value compared to walls, but I suppose we can add a few windows. And a cathedral ceiling and recessed lights and a hot tub and a finished room over the garage and a zero-clearance fireplace and a giant hole in the wall for fresh air. (Wait a minute…)
You see where this is heading. Home buyers have wants and needs, and they are most often at cross purposes with the aim of having an easily defined building envelope. And the harder the building envelope is to define, the harder it is to keep the uncomfortable outside away from the comfy interior.
List of thermal bypass locations
When developing their housing certifications, Energy Star put together their list of common thermal bypasses. Thankfully, the good folks at the Department of Energy have collected this info in one place: the Energy Star thermal bypass list:
- Kneewalls like those found in Cape Cod style houses
- The ceilings over porches
- Attic hatches
- Zero-clearance fireplaces (I love these, because the leaks are entirely enclosed and not evident to the naked eye)
- Skylights
- Garage ceiling joists attached directly to the building framing
- Attic stairs built into exterior walls
- Bathtubs and showers built into exterior walls
- Cantilevered floors like those found in Garrison houses.
And the hits just keep on coming. Check out Energy Star’s list of thermal bypasses and take a look around your house. Fixing one of these issues can be a real heat saver and money saver.
Erik North, the owner of Free Energy Maine, is an energy auditor and home performance specialist in Westbrook, Maine. He is also the author of the Energy Auditing Blog.
Fine Homebuilding Recommended Products
Reliable Crimp Connectors
Handy Heat Gun
Affordable IR Camera

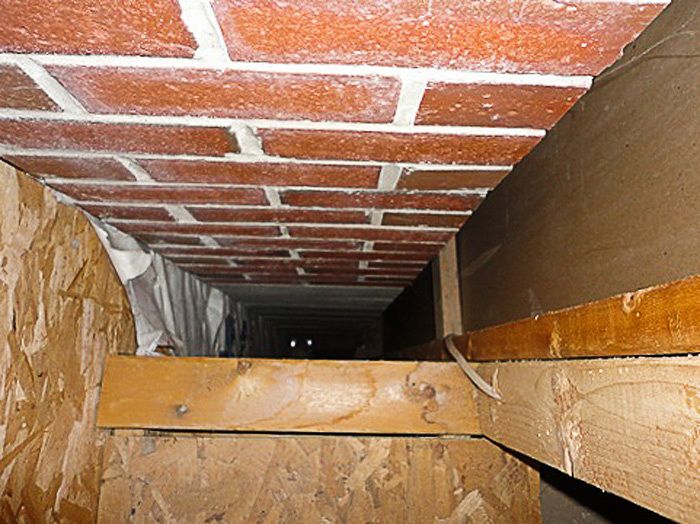

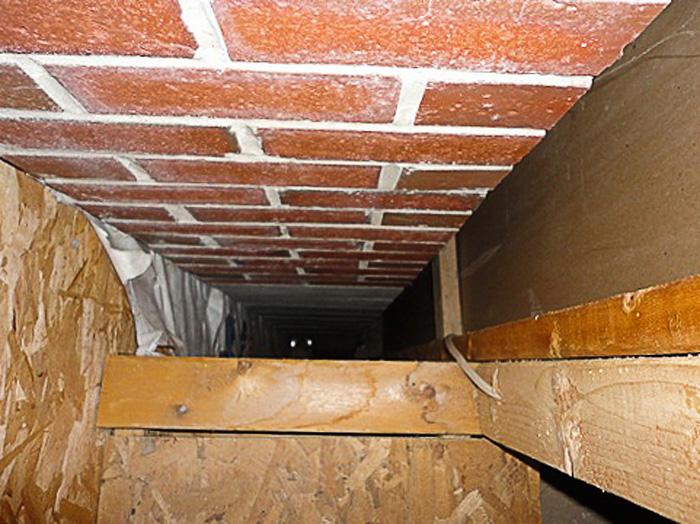

Why worry about the tiny cracks around your windows when there are huge holes in your attic floor?
