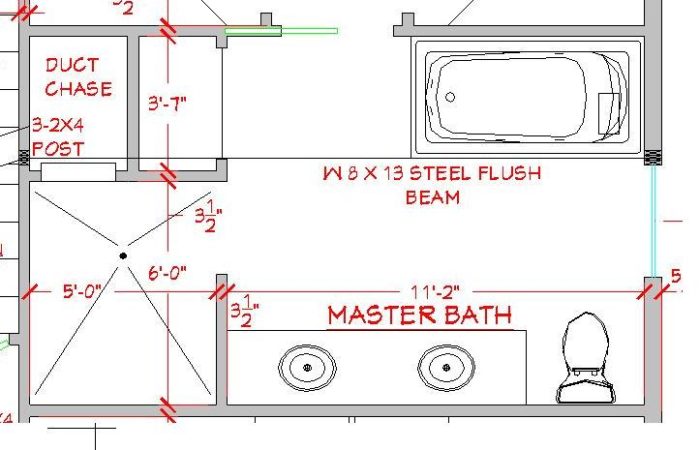

I was aksed by a customer today who is building a house if he could do this. He’s a good friend and while I have already referred him to the appropriate building inspector, I’d like to try to get him an answer on my own. I’ve attached a picture to try to convey what I’m trying to say. He wants to increase the size of this window by a foot. that means that the w 8×13 beam will sit on top of the window header approximatly 6″ in from the end. The header is a 2×10 box header, and the wall that the window is in is a gable end. There is a small bedroom above this bathroom with 11 7/8″ WI 40 joists that hang off of the beam and run forward over the vanity. There are no joists on the other side of the beam, so the beam only carries ends of the joists on one side for a span of only 6′. The loads that were used were 40 pound floor, 30 poound roof, and 20 pound ceiling if that is at all important. If anyone is familiar with this type of situation, I’d really like to help him out and atleast warn him if it’s not going to work.
