Tips & Techniques

Leveling Big Tiles: Tips and Tricks

Issue 254 - Oct/Nov 2015

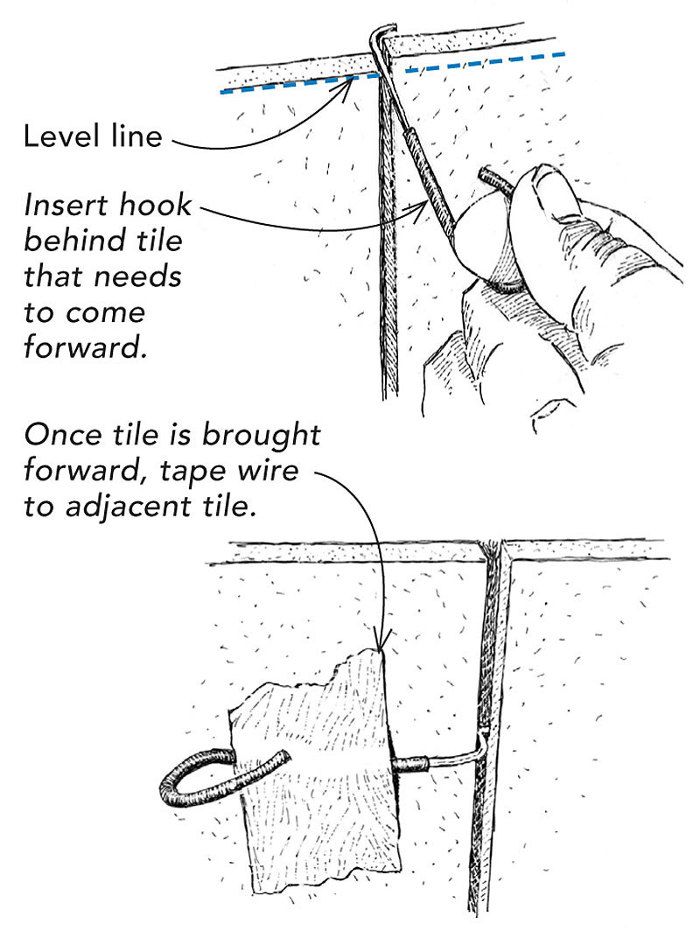

I used to have difficulty trying to level large tiles. I tried tile-leveling spacers, but I stopped using them out of frustration. Then while laying some 19-in. by 19-in. porcelain tiles, I realized that all I needed was a hook to lift a tile that was sitting low. In the trash, I found a piece of 12-ga. cable, stripped its end, and bent one of the wires into a little hook. I made a loop on the other end of the wire in the same direction as the hook so that I would know which way the hook was facing. I slipped the wire between the tiles, made a quarter turn so the hook was under the tile, and lifted. The 12-ga. wire with that small hook was strong enough to pull the tile level without a problem. Once I pulled the low tile up to level, I bent the wire over and taped it to the adjacent tile until the thinset cured.

— Vincent C. Pirrone, Sparks, NV

Edited and Illustrated by Charles Miller

From Fine Homebuilding #254

Sign up for the Fine Homebuilding Tip of the Day and get daily tips and special offers delivered to your inbox.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

View Comments

  1. bobbomax | Jan 26, 2019 04:13pm | #1

    Seems like this approach risks inadequate thinset coverage in the corner that's lifted. Might work on a wall, but it seems ill-advised on a floor.

  2. User avater
    cocarpenter | Jan 26, 2019 07:28pm | #2

    I have the same concerns as Bobbomax, seems like it could create an air pocket that would sound hollow and make the tile more fragile.
