Rhode Island 2016

Roof for Outdoor Unit

Snow can reduce the efficiency of the HVAC system, so we built a roof to shelter it

By Mike Guertin
Article Image

The outdoor unit of the Mitsubishi heat-pump system can freeze up in the winter or become bound up with snow. When these things occur, the system may start a defrost cycle and use considerably more energy, or it may just not work efficiently.HVAC Roof2

To ward off potential problems we did two things: First, we elevated the unit several feet off the ground. While deep snow is usually not a problem in our area, there have been times when accumulating and drifting snow can reach 3-ft. or more deep. And we built a roof over the unit to shed most of the rain and snow.









HVAC Roof2017-01-04 13.55

The roof wasn’t on the original house plans so we copied the design of the roof over the door to the deck. There are three linesets for the system that puncture the wall. It was hard to route the linesets tight to the outdoor unit because of structural beams and posts inside. Bruce came up with an idea to conceal the long lineset furthest away from the unit by making it part of the roof design. We copied the diagonal bracket design of the deck door roof but added 4×6 boxes under the wall leg of the post. This makes the box appear that it is intentional—even though it’s on the large side. A horizontal box conceals the linesets to the back of the unit. Later the remaining lineset will be covered by a low-profile half-round cap.





HVAC Roof2017-01-04 13.56HVAC Roof2017-01-04 13.57

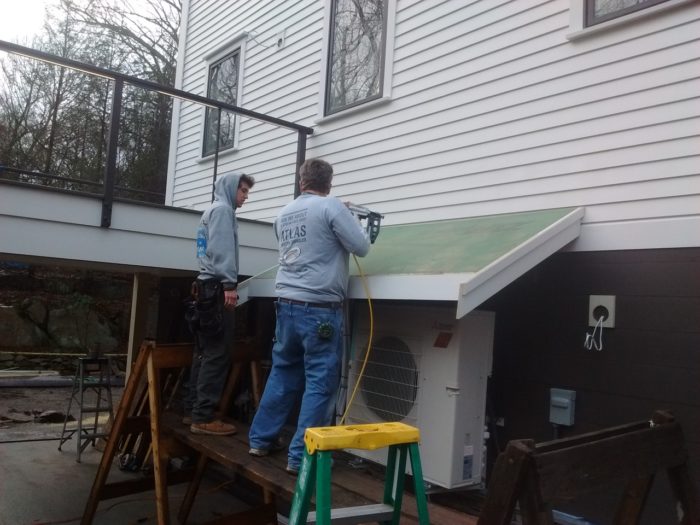

Bruce and Max mounted the pre-built roof frame without the sheathing on top so they could screw the ledger to the rim joist. After the sheathing was installed they applied the Boral rake and fascia trim, and TruExterior channel siding on the underside.





After the roof shingles were applied, Max and Bruce slipped the wall leg of the horizontal flashing under the course of lap siding. Since the siding is blind-nailed, this was a simple process.















HVAC Roof2017-01-08 11.27 HVAC Roof2017-01-04 15.05

Three days after the roof was finished we got 14 inches of snowfall. The roof overhangs the unit substantially enough to shed most of the snow away.HVAC Roof2017-01-08 11.47

Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.

Sign Up

Get home building tips, offers, and expert advice in your inbox

×
X
X

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

FHB House Logo

Sign up for FHB House eletters and get insider's access to the build, expert insights and special offers.

Sign Up
Rhode Island 2016 Videos Behind the Build: Vermont 2017 Behind the Build: California 2018 Behind the Build: Kentucky 2019 Behind the Build: Connecticut 2020

Navigate the Build

  • Introduction
  • Foundation
  • Framing
  • Windows and Doors
  • Insulation
  • Roof
  • Siding and Trim
  • Mechanicals
  • Interior Finishes
  • Kitchen and Baths
  • Outdoor Spaces
  • Completed Home

View Comments

  1. User avater
    johnb555 | Mar 27, 2017 04:40pm | #1

    Why does the facia on the left and right side project out a few inches farther than the front facia?

  2. User avater
    Mike_Guertin | May 25, 2017 08:01pm | #2

    Reply to johnb555

    The rakes extend past the fascia to match a feature the designer used on all the rakes. I'm not sure why he did that.
