Framing for a “Hot Roof”

An unvented roof brings the attic space into the conditioned envelope.

By Jason Black

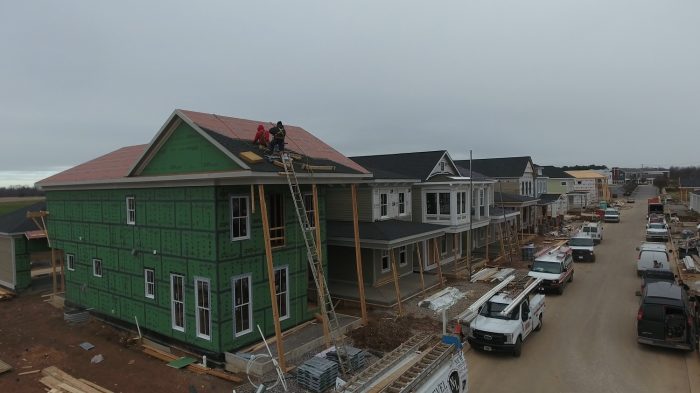

The roof framing is driven by the fact that the attic will be part of the conditioned space, so we have this space to run our heating and cooling ductwork without an efficiency penalty. To do this, we designed an unvented “hot roof.” The framing crew erected a structural ridge, hand-cut 2×8 rafters, and sheathed the roof with 5/8-in. Zip System sheathing. (Here we used the regular-style sheathing rather than insulated R-sheathing.) Once the panel seams are taped, the roof is dry. In Norton Commons all houses are required to have black asphalt shingles, which simplifies our aesthetic choices!

The rafters are anchored with Simpson Strong-Tie H2.5A hurricane anchors.

The roofers hand-nail the shingles, which leads to fewer over-driven nails and, on the whole, more accurate nail placement.

Fine Homebuilding Recommended Products

Fine Homebuilding receives a commission for items purchased through links on this site, including Amazon Associates and other affiliate advertising programs.

Plate Level

A plate level allows to you plumb walls accurately because it registers off the plates without touching potentially warped or twisted studs. This one can reach the plates on 12-ft. tall walls.

Buy at Amazon

Roofing Gun

This lightweight, pneumatic roofing nailer is capable of driving ¾-in to 1¾-in coil roofing nails and has a depth adjustment wheel to dial in nailing depth on the various shingle types you're likely to encounter.

Buy at Amazon

Peel & Stick Underlayment

Often required by code, this durable, slip resistant, self-sealing, and self-adhered roofing underlayment is easy to install and ensures maximum protection along roof eaves, rakes, and valleys.

Buy at Amazon

View Comments

FJN | Jul 11, 2019 12:54pm | #1
By the way,you installed the Simpson H2-5A ties on the wrong side of the wall. Here is a link to Simpson showing correct installation.https://www.strongtie.com/resources/product-installers-guide/h25a-installation

I thought this was Finehome Building I was tuned to ?
