Tips & Techniques

Shoehorning a Vanity Top

Issue 68

Every so often I have to install a vanity top between two out-of-square walls. If the opening is wider in front, it’s not a problem because I can slide the top in easily. But if the backside is wider than the opening, it can be tough to install the top and maintain a tight fit—there should be no more than a 1/8-in. gap between the top and the wall.

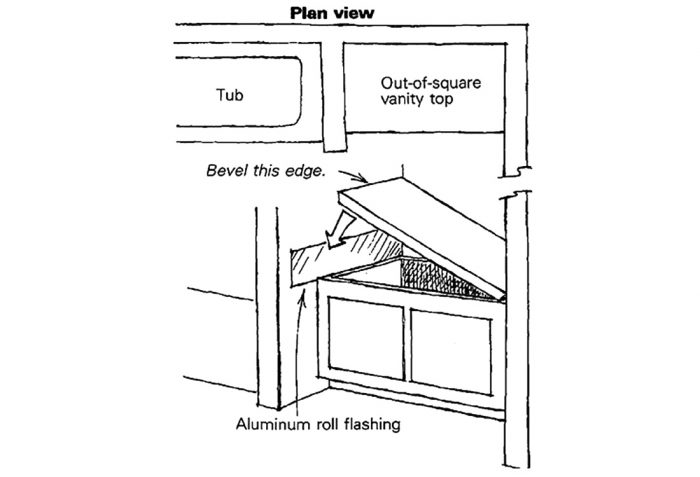

In a case like this, I bevel the countertop along the bottom edge of one side, as shown in the drawing. Next I lean a strip of aluminum roll-flashing against the wall on the side where the beveled edge will rest. The flashing protects the drywall as I place the top on its base, using a little persuasion. To finish up, I pull out the flashing and caulk the edges.

Rick Morgan, Manchester, NH

Edited by Charles Miller

From Fine Homebuilding #68

Sign up for the Fine Homebuilding Tip of the Day and get daily tips and special offers delivered to your inbox.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

View Comments

  1. carlbobo | Jan 02, 2018 07:03pm | #1

    Don't you have to bevel the bottom edge of the vanity top?

  2. Cornelius99 | Jan 02, 2018 10:21pm | #2

    A strip of plastic laminate also works nicely as a drywall protector.

  3. b0bb0 | Jan 03, 2018 02:18pm | #3

    ii623, he says in the article, "I bevel the countertop along the bottom edge of one side, as shown in the drawing."

  4. S_curvy | Feb 28, 2018 05:11pm | #4

    That "less than 1/8" caulk joint" is problematic for 2 reasons: A) Everybody knows that 1/4" is most manufacturers' minimum gap for a caulk joint, because B) this geometry and size pretty much yields a 2-way joint, which is destined to failure.

    A 1/4" joint is suddenly much easier to install. Also, if one is going to the trouble of beveling that edge, which will be visibly out of square from the front view, then why not create a template from the RO and then use that to get a scribed edge that will yield a consistent joint?
