How to Make Simple Storage Bins for Workshop Drawers
These custom-fit boxes are an affordable alternative to store bought trays if you need to organizing hardware, tools, and more.
If you have a drawer in your garage, basement, or workshop where you keep screws, nails, and other small parts, you could start eating chicken livers until you have enough empty containers to store them all, but there’s a better way.
Cliff Kancler of Los Altos Hills, Calif., got tired of storing screws, and nails, and other small parts in little separate containers in his drawers, so he figured out a way to make a customized storage system using just 2 plastic parts: a square vinyl downspout and a piece of edging that is used with vinyl siding. Let’s see how he did it.

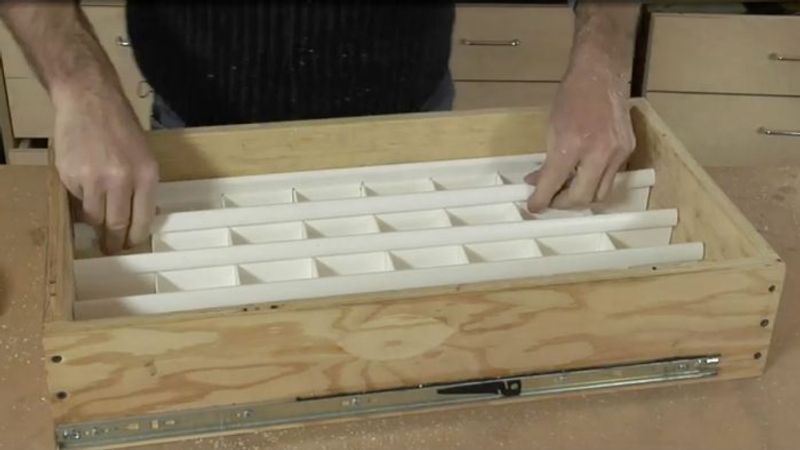

I cut the downspout pieces to the length of the drawer and then used a tablesaw to remove one side of the downspout. The first cut was pretty simple; for the second cut, I used a piece of duct tape to secure the loose side so that the blade doesn’t catch it and kick it back. I then cut the nailing strip off of the vinyl edging and cut the pieces to length. Then it’s time to gang up the pieces of downspout and secure them together with the pieces of edging. The next thing I do is turn the unit over. I decide what increments I want my individual storage compartments to be–in this case I’m going with 3 inches, so I measure across and make 3-in. marks down the length of the downspout. I use a framing square to continue my lines across the ganged pieces, and then I set the depth of my circular saw to go from the bottom edge of the unit to the vinyl edging, which in this case is 1-3/4-in. I then simply make a series of crosscuts across the back of the storage unit. I now take the sides that I had previously cut off of the downspouts and cut them to length to use as dividers for the compartments. I stick them in the slots made by the circular saw and use a couple of strips of duct tape to hold the whole thing together.
That’s a very clever tip. Thanks for sending it, Cliff.
Kevin Ireton is editor-at-large and a good friend and former colleague of Chuck Miller’s. Keep your eye out for more Better Way videos from Kevin and several of our other regular contributors in the near future.
