Pouring the Footings

Placing the concrete and stripping the forms.

By David Good

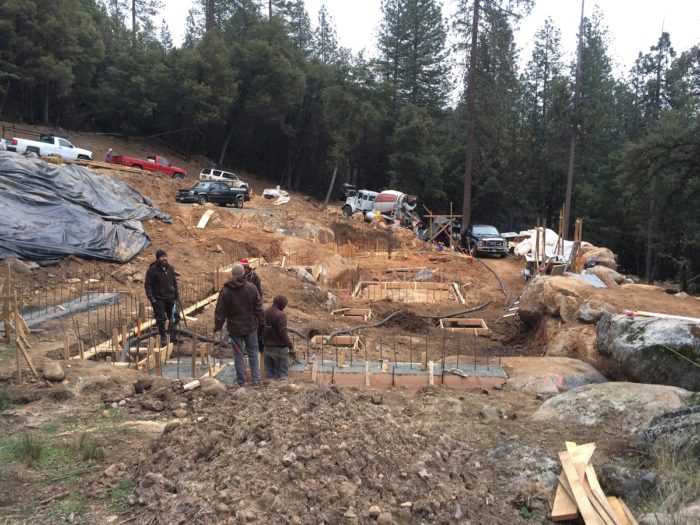

We always get some extra hands for a pour to make sure it goes well. Placing concrete is basically permanent. For this pour we used the keyway as our screed level and concentrated on troweling a nice platform to build the wall forms upon. The keyway form “floats” on steel stakes that are pulled ASAP. The vertical dowels are studded out through notches in the keyway board. In areas of cascading rock, we needed to form steps and dowel into the granite. The next day we pulled all of the forms, salvaging what we could for future uses.

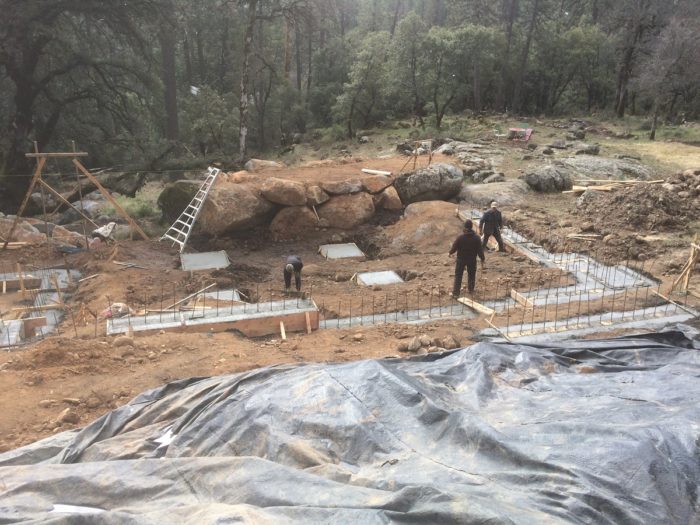

The footings were troweled and allowed to set overnight. Steel columns will land on the four square footings seen here to support our elevated floor structure.

Closeup of one of the stepped footing sections and 2×6 keyway.

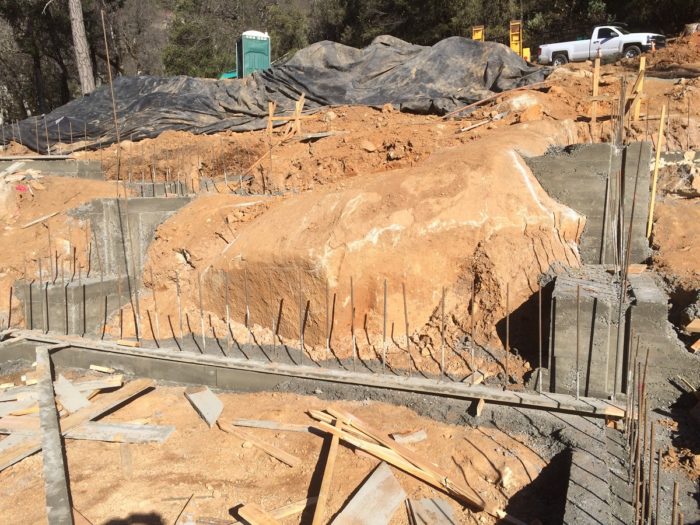

The basement boulder surrounded by footings. The footings for our basement are in the foreground. The basement footprint shrank because of this boulder.

Fine Homebuilding Recommended Products

Fine Homebuilding receives a commission for items purchased through links on this site, including Amazon Associates and other affiliate advertising programs.

Original Speed Square

A Speed Square or rafter square can help you cut rafters, measure angles, and accurately guide your saw for straight and angled cuts. It's a must have.

Buy at Amazon

100-ft. Tape Measure

Laying out mudsills and foundations for new homes and additions requires a bigger tape measure than your everyday carry.

Buy at Amazon

Anchor Bolt Marker

Quickly transfer anchor bolt locations to mud sill stock without measuring mistakes.

Buy at Amazon

View Comments

RussMill | Aug 02, 2018 11:09am | #1
Ever hear of blasting?? Why not drill and blast BEFORE U shrink basement???
