Tips & Techniques

The Big Drawer

DIY truck-bed extender allows for easy access to stored items.

Issue 189

I know truck-bed extenders are available commercially, but I decided to make my own to demonstrate my carpentry and problem-solving skills to my clients. It seems to have worked. My truck’s Big Drawer never fails to be a great conversation starter.

The Big Drawer is made up of two parts: the drawer and the support-roller system. Neither is attached to the truck bed, so it’s not difficult to remove the rig if I need to haul a load of material.

truck-bed drawer pulled out

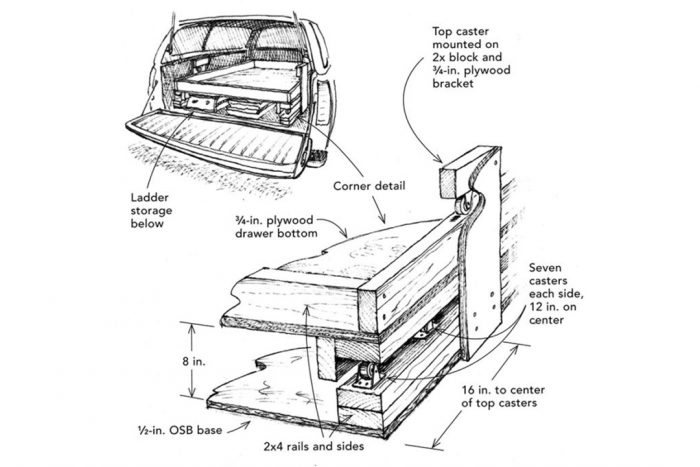

The drawer measures 4 ft. by 8 ft. and is raised about 8 in. above the base to allow room for stepladders or folding sawhorses. As shown in the drawing, the drawer rides on casters affixed to 2×4 rails. To prevent the drawer from tipping when it’s extended, I attached a couple of overhead casters on plywood brackets 16 in. from the tailgate. The weight of the drawer, in addition to the tools in it, gives the drawer enough friction to prevent it from sliding out. When fully extended, the drawer is 5 ft. past the truck’s bumper, allowing for easy access to items stored near the cab.

Brad Moritz, Charlotte, NC

Edited and Illustrated by Charles Miller

From Fine Homebuilding #189

Sign up for the Fine Homebuilding Tip of the Day and get daily tips and special offers delivered to your inbox.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

View Comments

  1. user-6129057 | Jun 14, 2016 12:51am | #1

    Where are the plans and material build list?

    1. ChrisCasey | Jun 14, 2016 09:46am | #2

      Thanks for pointing that out to us. Some of our content got a little mixed-up in the conversion to the new website.
      All set now.

  2. K6_4759931 | Nov 02, 2016 05:33pm | #3

    Built one for my truck this Saturday from the pics above. Works fantastic! I installed 5/8" dowels 2.5" into the side rails 3" from the rear. They stick up 1.5" so they act as a safety stop when they hit the top roller. They are removable so I can slide the bed out if I need to. Thanks for the idea!

  3. jdsand13 | Jul 04, 2018 12:15pm | #4

    I don't get the "corner detail" in the drawings. It looks like its rounded over for the big drawer, is that necessary? Why can't that be sqaure? If I'm understanding it correctly...

    1. wselig | Jun 28, 2021 04:41pm | #6

      I think that's just a cutaway view, so you can better see the roller in there behind the bracket.
      From the wide view it is shown square.

  4. user-7577837 | Nov 12, 2019 02:38pm | #5

    I am also trying to locate the plans and material build list.
