Tips & Techniques

Scribing with Masking Tape

By Charles Miller Issue 237 - Aug/Sept 2013

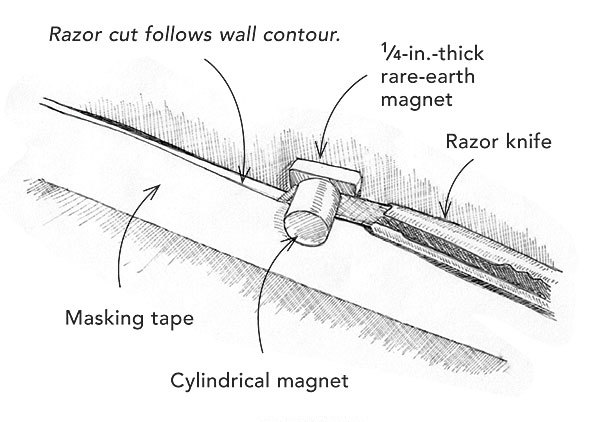

Here’s a variation on the common scribing technique of transferring the contours of a wall to the edge of a countertop with a pencil. As shown in the drawing below, I run a length of masking tape along the edge of the counter that needs to be scribed to the wall. Then I run a razor knife with a 1/4-in.-thick rare-earth magnet between the blade and the wall along the length of the counter, cutting the masking tape to reflect the wall’s contours. The cylinder magnet rides on the masking tape, helping to keep the blade perpendicular.

With the counter scribed, I remove the wall side of the tape, and cut, plane, and sand the counter as necessary to get a tight fit. Unlike a pencil line, which can become smudged and hard to see, the masking tape makes it easy to see where the cuts need to be and offers a measure of protection to the counter’s surface.

—Don Mathis, Macomb, IL

Edited and illustrated by Charles Miller

From Fine Homebuilding #237

Sign up for the Fine Homebuilding Tip of the Day and get daily tips and special offers delivered to your inbox.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

View Comments

  1. ktkcad | Dec 28, 2019 07:02pm | #1

    Nice tip/reminder from 2013.
    Depending on your countertop material, you might want the scribe's blade to get a good bite of the countertop (or anything else like a cabinet edge...) to help stop it from chipping out as one closes in on finishing to the scribe line. I especially like the use of the magnet for keeping the blade perpendicular.
