Tips & Techniques

Affixing a Router Template to a Finished Surface

Issue 172

In his article Inlaying a floor medallion, Charles Peterson showed a technique using double-face foam tape to hold a template in place for routing. I use a similar method to hold templates, which I think has some advantages. Double-face tape is very sticky and can damage finished surfaces. It’s so sticky that I’ve found it to be a do-or-die situation when positioning the template. There just isn’t any room for adjusting it.

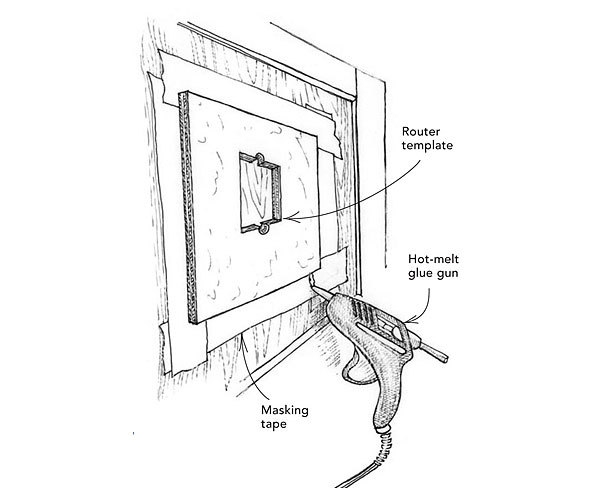

As shown in the drawing, I use ordinary hot glue and masking tape for these applications. I cover the area under the template with a layer of 3M blue masking tape. Then I squeeze a line of hot glue around the perimeter of the template and stick it to the tape.

The router template in the drawing is made for outlet boxes that frequently need to be installed in kitchen-island cabinets. This technique beats trying to run a sabersaw on a lacquered surface right at the edge of a raised panel.

I have used this method on all kinds of materials, finished and unfinished, vertical, horizontal, and upside down. The blue tape prevents damage to finishes, and on raw wood, it keeps the glue out of the grain. If the template isn’t positioned correctly, I simply pull it off, scrape off the glue, and then try again. A hot-glue gun rides around in my router box for just this purpose.

Gregg Roos, San Francisco, CA

Sign up for the Fine Homebuilding Tip of the Day and get daily tips and special offers delivered to your inbox.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters

New Feature

Fine Homebuilding Forums

Ask questions, offer advice, and share your work

View Comments

  1. jwinko | May 05, 2017 08:52am | #1

    THis is an insanely complex way to avoid accurate measurement and careful cutting.

  2. BobboMax | May 05, 2017 01:21pm | #2

    I disagree w/ jwinko- no doubt it's complex but when you're working on finished surfaces that you can't afford to mess up, I think it offers a lot.

    It doesn't avoid the requirement for careful measurement, but the ability to use a router gives the possibility for a lot more precision than a saber saw, both in terms of the quality and the location of the cut. And if you're going to use a router, you need a template. And if you use a template, you have to position it accurately and firmly, but without the possibility of damaging the substrate.

  3. ktkcad | Oct 25, 2019 06:13pm | #3

    Templates are a great way to leverage your original accurate measurements and promote careful cutting. Your measurements are now a one-time thing and the right template will never let you overcut.
    Its the real world's answer to 'cut & paste' or in this case 'glue and cut'...yes, pun intended.
