Installing a Nail-Fin Window Over Housewrap

By Jake Bruton

As we add thicker insulation and more water-sensitive materials to the walls of our houses, it becomes increasingly important to detail our exterior walls to keep water out. Window flashing is one of the parts of a house where this matters most. Getting flashing details right for the common nail-fin-style window means making leakproof transitions between the water-resistive barrier (WRB) and the flanges that fasten the window to the wall.

In this Fine Homebuilding Shop Class video series, professional builder Jake Bruton demonstrates the crucial steps for getting the flashing details right when installing a flanged window in a wall covered in housewrap—in this case, Benjamin Obdyke Hydrogap. In the first episode, Jake prepares the opening in the wall by cutting through the Hydrogap and taping it back to the studs inside the rough opening. Next, he adds a bead of sealant before inserting, plumbing, squaring up, and fastening the window in place. The third episode outlines the methods for taping over the flanges to create the primary waterproofing details. Finally, he applies foam and sealant in the gaps between the window and the interior side of the rough opening to wrap up this airtight, energy-efficient installation.

Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
×

Get home building tips, offers, and expert advice in your inbox

Signing you up...

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
See all newsletters
See all newsletters
Start Watching

Videos in the Series

  • Part 1: Prepare a Rough Opening for a Nail-Fin Window over Housewrap

    After installing the water-resistive barrier, cut the window opening and then use bevel siding and tape to create a positive-slope sill.

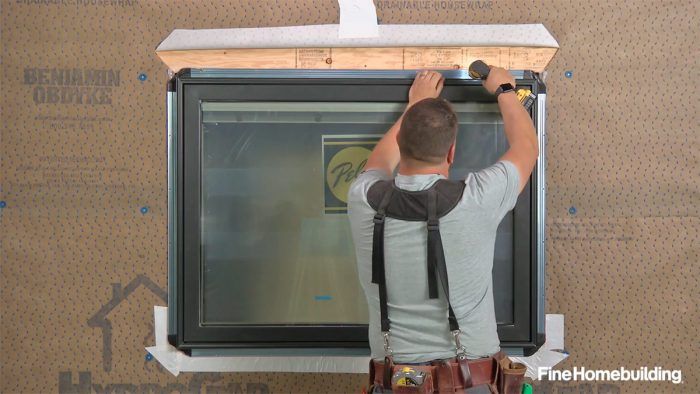

  • Part 2: Install a Nail-Fin Window over Housewrap

    Use a manufacturer-approved type of sealant to bond the window to the water-resistive barrier before setting, squaring, and fastening the window to the framing.

  • Part 3: Flash a Nail-Fin Window over Housewrap

    Apply and roll strips of a compatible flashing tape up the sides and across the head of the window for a weathertight installation.

  • Part 4: Air-Seal and Insulate a Nail-Fin Window over Housewrap

    Spray foam and high-quality sealant bridge all of the gaps between the framing, shims, and window for a durable and energy-efficient installation.

  • Have a different type of wall? Check out the full video series

    See additional window-flashing details for walls with Exterior Rigid Foam, Zip System sheathing, Peel-and-stick Membranes, and Fluid-applied WRBs
