Frame a Gable Wall

This fundamental approach hinges on an accurate layout that keeps the math to a minimum.

By Brian Vogt Issue 272 - Dec 2017/Jan 2018
Article Image

After almost 20 years in the field, I know well that there are usually several good ways to complete any carpentry task. But here at North Bennet Street School (nbss.edu), where I now spend my days teaching carpentry, we stress fundamental textbook methods that minimize complex math and avoid specialty tools.

Our 2016 graduating class included 21 students, and, as we do every year, we used real construction projects to teach them carpentry. In addition to the small structures we built in our Boston shop at the beginning of the program, we finished with a full build. This year we framed a 24-ft. by 48-ft. barn, and used the opportunity to take the students through the basics of building a gable wall: laying it out full scale on the attic floor, framing it, sheathing it, attaching the overhangs, and, finally, raising it safely.

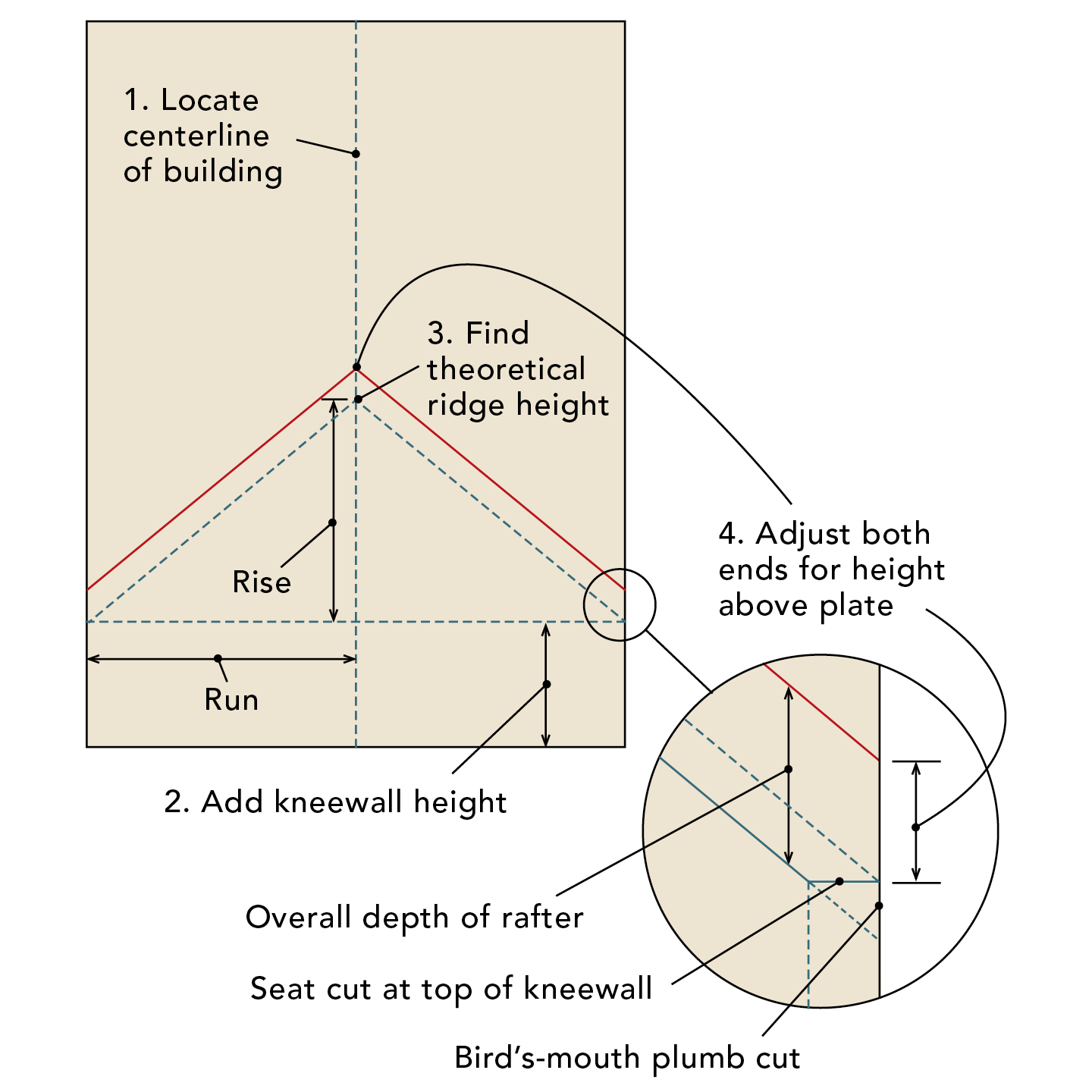

Start with a full -scale layout

Start with a full -scale layout

1. Find the center of the building and snap a line parallel to the eaves. This represents the roof ridge.

2. If the roof will rest on kneewalls, add their height on both sides of the gable and snap a line in between.

3. Use a construction calculator (or web application) to determine the theoretical ridge height: Enter run in feet and inches. Enter pitch in inches (found on building plans). Press rise.

4. Measure the height of the bird’smouth plumb cut (See “Cutting and Setting Common Rafters” FHB #142) and subtract this amount from the overall depth of the rafter to find the height above plate (HAP). Add this HAP number to both the ridge height and kneewall height, and snap a line on the subfloor between them to mark the position of the rafter’s top edge.

To read the entire article, click the View PDF button below.

Sign up for eletters today and get the latest how-to from Fine Homebuilding, plus special offers.

Sign Up
View PDF
X
X
Previous: A Better Way to Build Tall Walls Next: Framing Big Gable Walls Safely and Efficiently

Guide

Framing

Chapter

Framing Walls

View Comments

  1. user-6974719 | Feb 27, 2018 07:49am | #1

    Why is there so much wood in this gable wall? No ridge beam so doesn't appear to be load bearing, small window wouldn't seem to need the large header of so many jacks and kings?
